侧装小型浮球液位开关
ü 经典设计，尺寸紧凑。 Classic design， compact size。
ü 无待机功率消耗。No standby power requirement
ü 客户可自定义动作距离，线长和端子。Customer can define activated distance, cable length and connecter
ü 密封设计，可工作于恶劣环境，性能稳定，寿命超长。Hermetically sealed, suit to tough environment, performance is stable and life is long.
广泛应用于空调、加湿机等家用电器领域。Widely used in air conditioning system and humidifier and other household appliances.
电气参数:
| 触点形式 Contact form | 常开型 Normally open | 常闭型 Normally closed | 高电压常开型 Normally open high voltage | 高电压常闭型 Normally closed high voltage | 单极双投型 Change over |
| 最大触点容量 contact rating max. | 10W | 50W | 5W | ||
| 最大开关电压 Switching voltage max. | DC200V AC140V | DC220V AC250V | DC175V AC125V | ||
| 最小击穿电压 Breakdown voltage min. | 250V | 580V | 200V | ||
| 最大负载电流 Carry current max. | DC1.0A | DC3.0A | 0.5A | ||
| 最大开关电流 Switching current max. | 0.5A | 1.0A | DC0.4A AC0.28A | ||
| 最大接触抗阻 Contact resistance initial max | 0.2Ω | 0.2Ω | 0.2Ω | ||
| 最小绝缘抗阻 Insulation resistance min. | 106 mΩ | 106 mΩ | 106 mΩ | ||
| 工作温度 Operating temperature | -20~+80℃ | -20~+80℃ | -20~+80℃ | ||

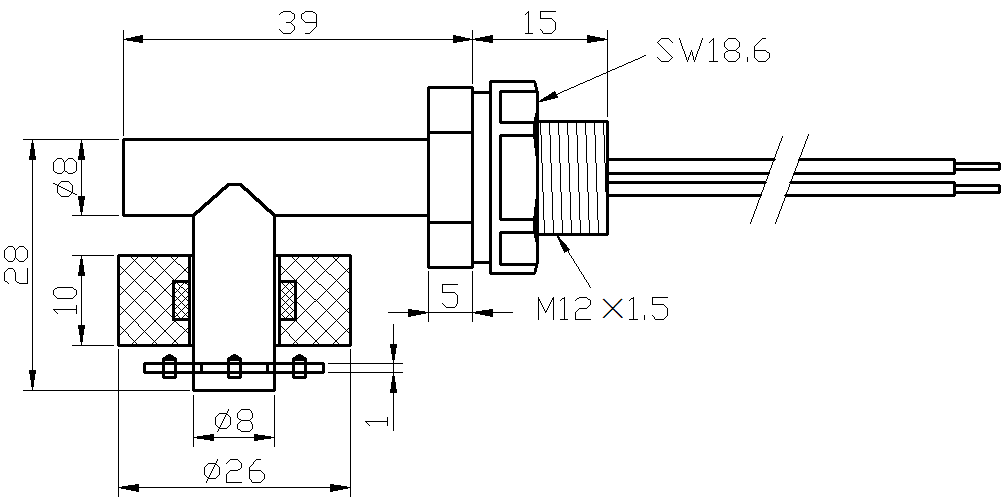

规格图纸：

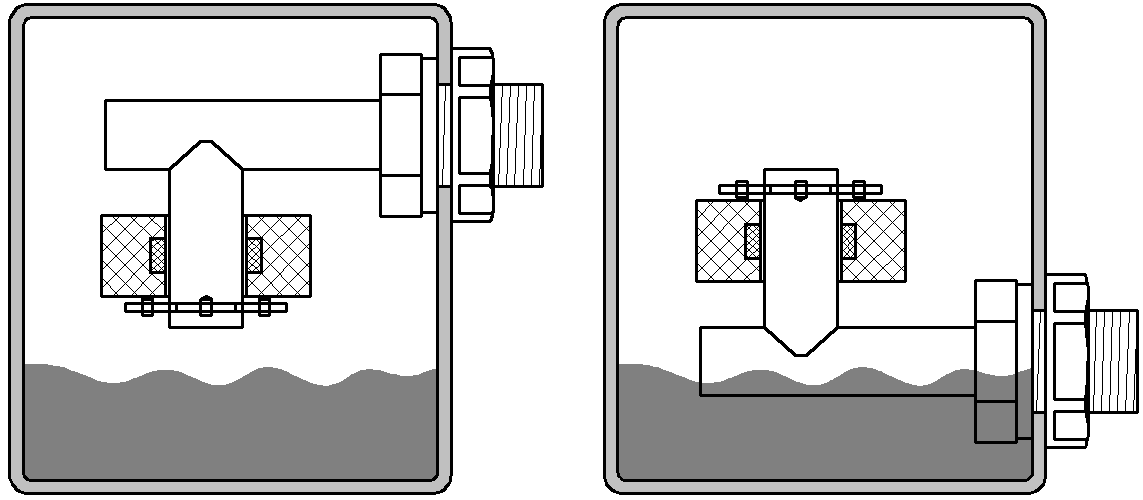

安装示意图：
